Scratch and Dent TSM-22 Pocket Cutter Machine

Product Description

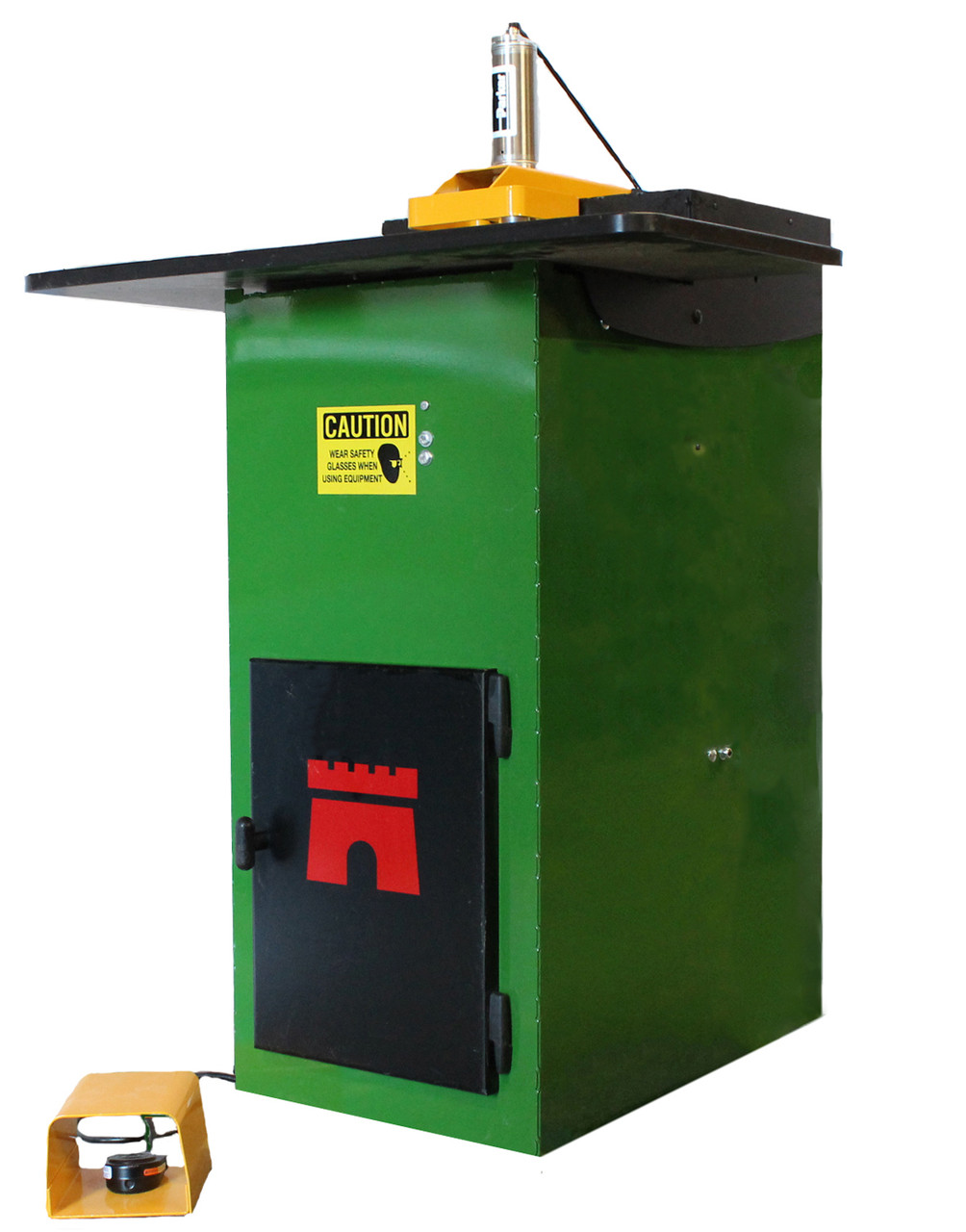

Scratch and Dent TSM-22 Pocket Cutter Machine

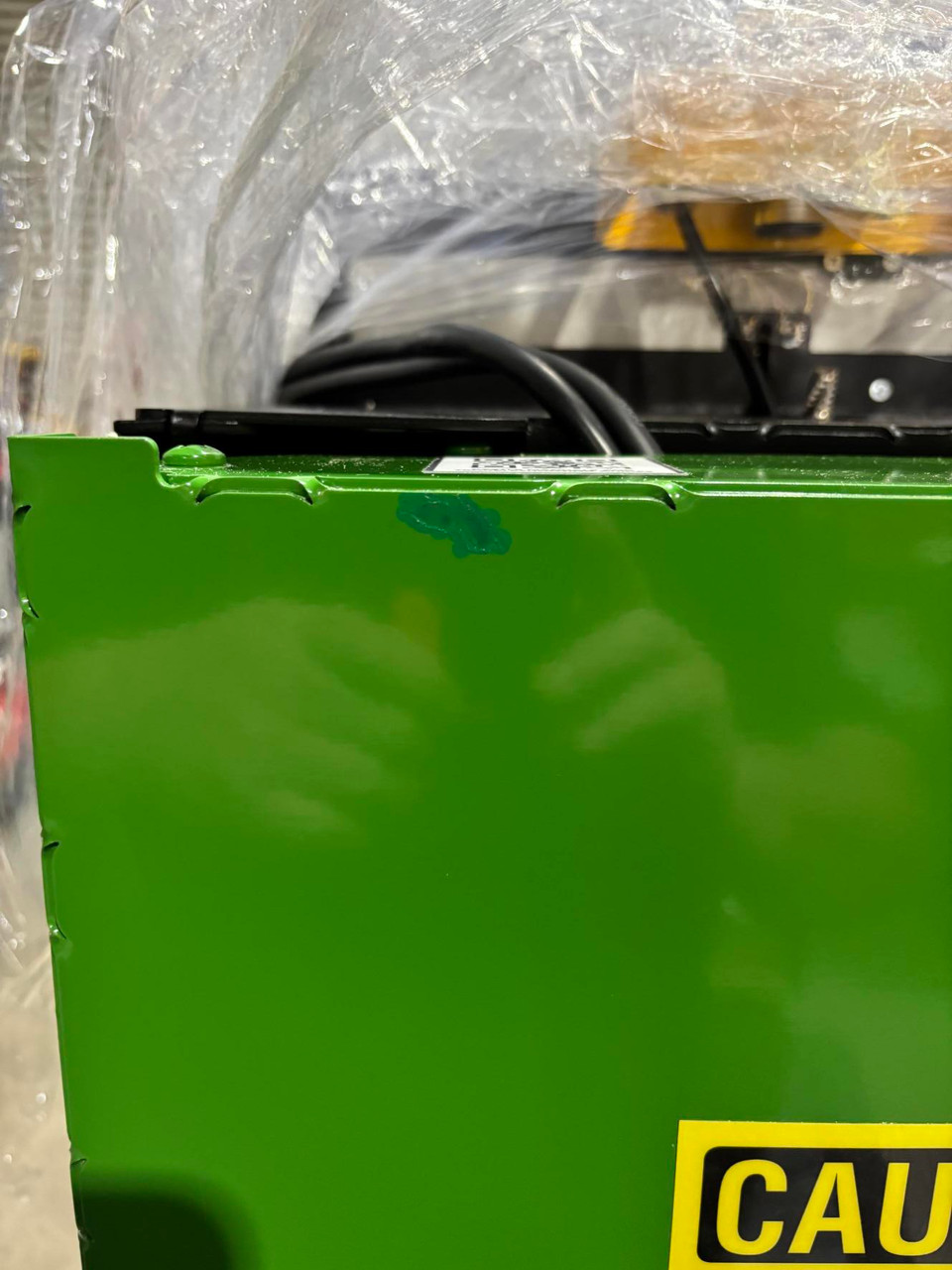

NOTE: These unit has been discounted due to very minor imperfections in the paint, and or other parts on the machine.  Full Warranty still applies.  See photos for sample damage.

The TSM-22 is our latest model in the TSM-20 series, the most widely used - and best-selling - pocket cutting machine series ever made. Known for its pioneering, 6 degree, low-angle pocket, unsurpassed durability, ease of operation, and low maintenance, the TSM-22 is a clear favorite among professionals in cabinet making, furniture making, and woodworking.

The TSM-22 clamps the stock, routs a pocket, and drills a pilot hole - all with a tap of the foot pedal - in a cycle time of just 1.5 to 2 seconds.

With the TSM-22, creating strong, stable joints is fast and easy. Requiring minimal training and maintenance, the TSM-22 uses standard 110V electric, and only requires minimal set-up upon delivery.

Use the TSM-22 with composites, panel, hard or soft wood.

Features and Benefits Include:

• Cuts the Castle low-angle, 6 degree pocket, for strong, stable, tight, and superior joints
• Designed for professional, joinery with maximum throughput of parts and components
• Low-angle, 6 degree pockets minimize the need for clamping during assembly
• Cuts pocket and pilot hole in a single cycle, increasing throughput and decreasing material damage and waste
• Footswitch with automated operation that’s simple and easy to use
• Adjustable for different sized webs
• Standard machine height with a small footprint - easy to fit into any shop

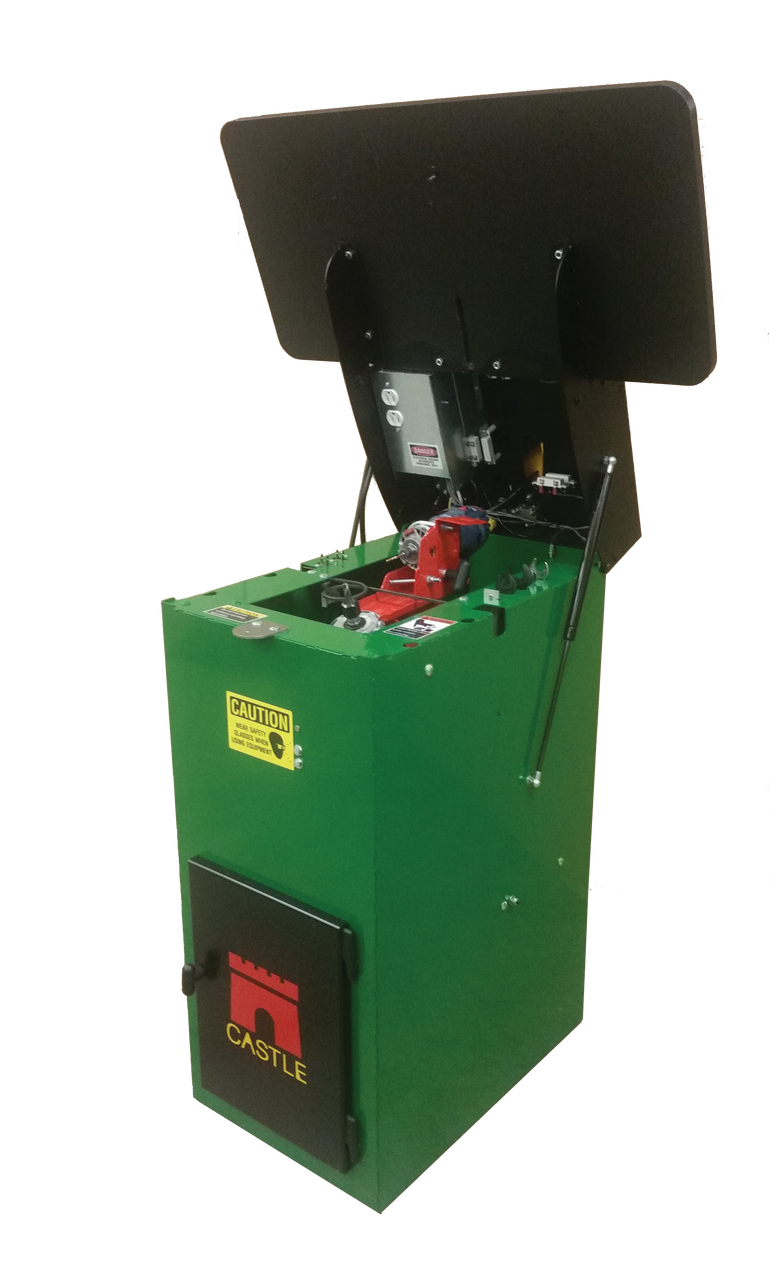

• Lid lifts for fast and easy tool changes and maintenance
• Minimal shop air required: 85 psi
• Integrated, 4” dust port for minimizing dust and debris
• Requires only basic, 110V power
• TSM-22 requires minimal assembly, for quick integration into any existing production process or work-flow

Technical Specifications:

• Router: Bosch 2.25hp #1617EVS
• Drill: Bosch Colt 1.0hp #PR20EVS
• Router bit: 3/8" Cobalt Steel 4-Flute Roughing Router Bit
• Drill bit: Premium 9/64” Brad and Spur TiN-Coated Bit
• Power req: 110V, 15 amps
• Air req: 85 psi
• Bosch 1617 Router 2.25hp for pocket cutting
• Bosch Colt Router 1hp for drilling pilot hole
• Basic footprint: 31.5″ depth x 30″ width x 48" high
• Working height: 36.5″
• 4” integrated dust port
• Manufactured in USA
