TSM-22 Pocket Cutter Machine

Product Description

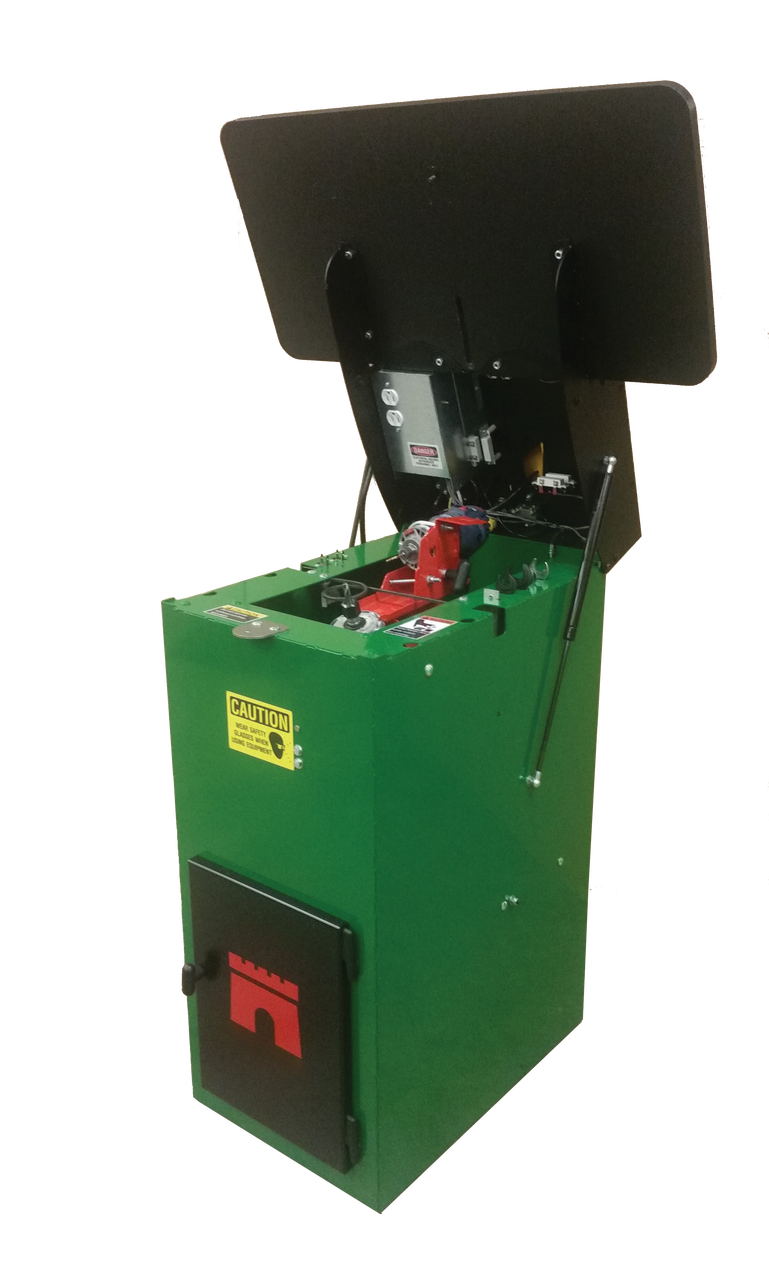

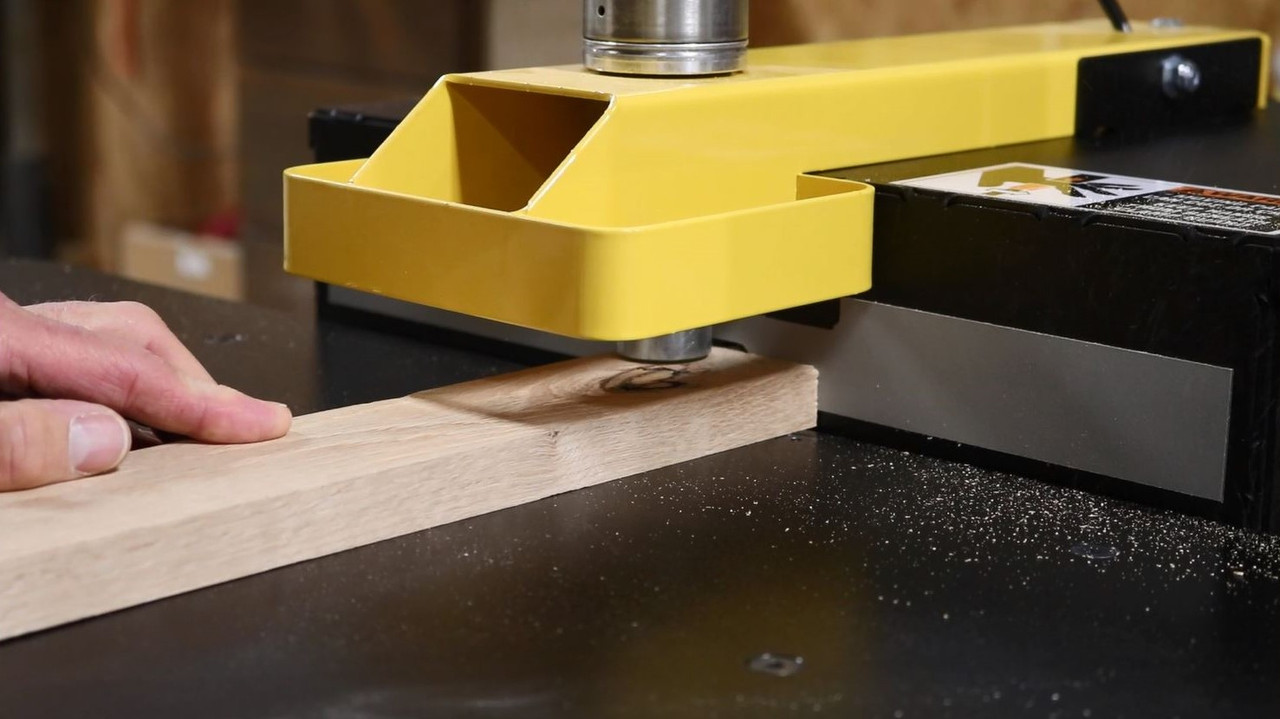

TSM-22 Pocket Cutter Machine

The TSM-22 clamps the stock, routs a 6 degree, low-angle pocket, and drills a pilot hole - all with a tap of the foot pedal - in a cycle time of just 1.5 to 2 seconds. Known for creating Castle’s pioneering, 6 degree, low-angle pocket, the TSM-20 series has a well-earned reputation for unsurpassed durability, ease of operation, and low maintenance.

The TSM-22 is the latest model in Castle’s vaunted TSM-20 series, the most widely used, and best-selling series of pedal-operated pocket cutting machines ever made. It is a clear favorite among professionals in cabinet making, furniture making, woodworking, and more.

Creating strong, stable joints is fast and easy with the TSM-22. Very little training is required and with a work deck that smoothly lifts, maintenance is hassle-free. The TSM-22 is PLC controlled for better performance and easier troubleshooting, uses standard 110V electric, and only requires minimal set-up upon delivery.

Use the TSM-22 with composites, panel, hard or soft wood.

Features and Benefits Include:

• NEW - Now PLC controlled for optimal performance and easier troubleshooting

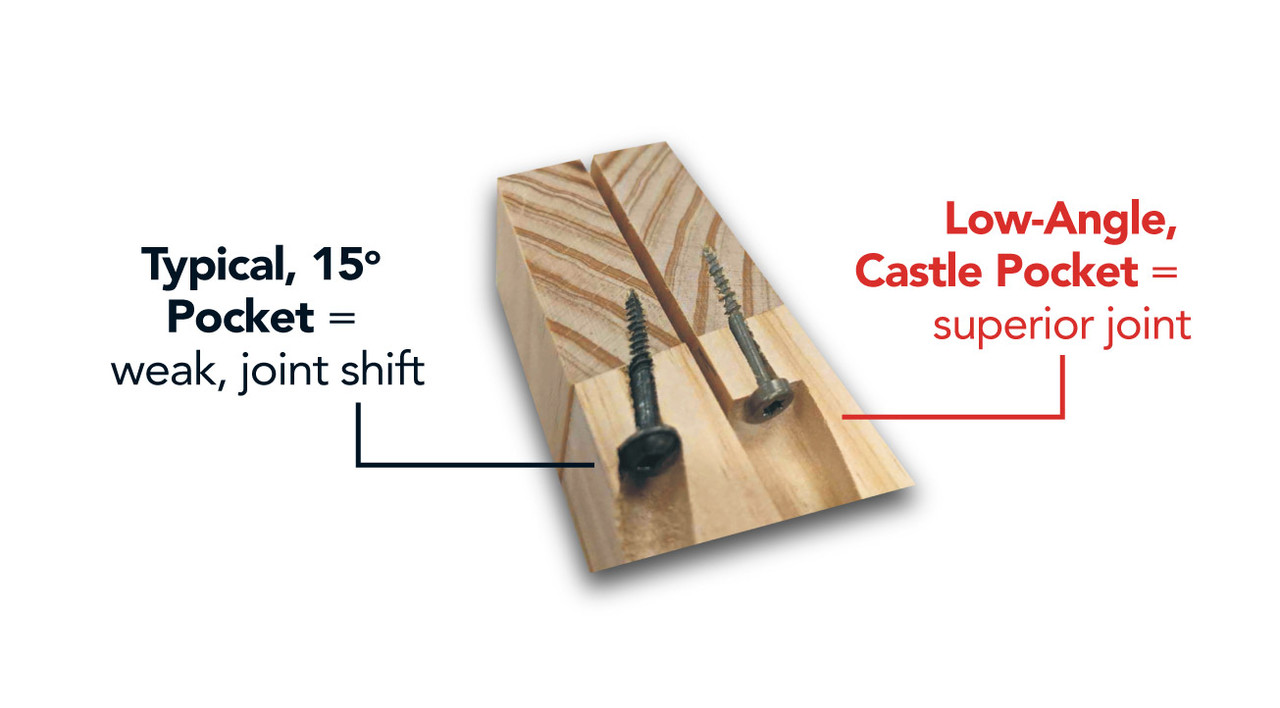

• Cuts the Castle low-angle, 6 degree pocket, for strong, stable, tight, superior joints: joint shift is greatly reduced, minimizing the need for clamping
• Cuts pocket and pilot hole in a single cycle, increasing throughput and decreasing material damage and waste
• Footswitch with automated operation that’s simple and easy to use
• Adjustable for different sized webs
• Lid lifts for fast, easy tool changes and maintenance
• Minimal shop air required: 85 psi
• Integrated, 4” dust port for minimizing dust and debris
• Standard machine height with a small footprint – easily fits in any shop
• Requires only basic, 110V power
• TSM-22 requires minimal assembly: fast integration into existing production processes or work-flow

Technical Specifications:

• Router: Bosch 2.25hp #1617EVS
• Drill: Bosch Colt 1.0hp #PR20EVS
• Router bit: Premium 3/8” Solid Carbide, Rough Mill
• Drill bit: Premium 9/64” Brad and Spur TiN-Coated Bit
• Power req: 110V, 15 amps
• Air req: 85 psi
• Basic footprint: 31.5″ depth x 30″ width x 48" high
• Working height: 36.5″
• 4” integrated dust port
• Manufactured in USA

TSM-22 Unboxing Video

TSM-22 Assembly Video
